Advanced Extrusion and Forging Technology

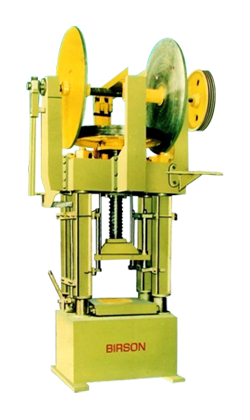

Four Column Friction Screw Press Model FPB

These screw presses are designed for heavy duty operations for pressing of fire bricks. The four columns are fitted with replaceable wearing liners and machined to close tolerances to ensure perfect seating of cross beam which is most essential for lamination fire bricks.An ejector is provided at the lower part of the table base.


Type Nominal Capacity Dia of Screw No. of Strokes Size of Table Max. Distance between table & Ram Min Distance between table & Ram Power Required
  Tons mm/inch Per Minute mm/inch mm/inch mm/inch H.P.
FPB 200 155 15 600x600 600 280 15

In view of continuously development, we reserve the right to modify the design and or dimensions without notice.
