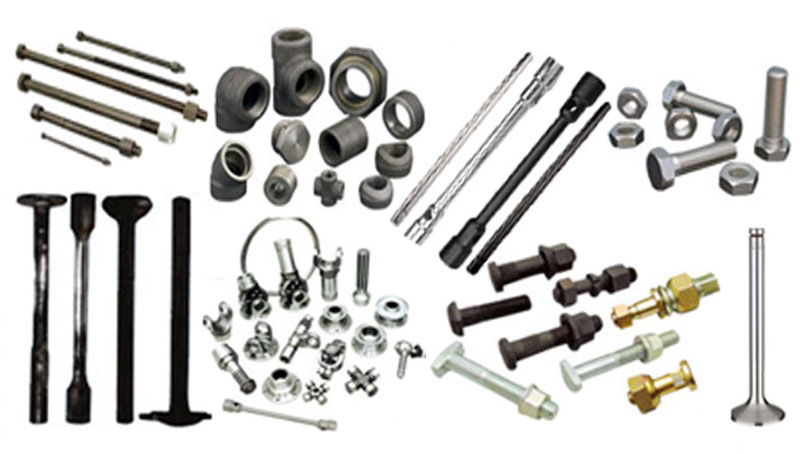

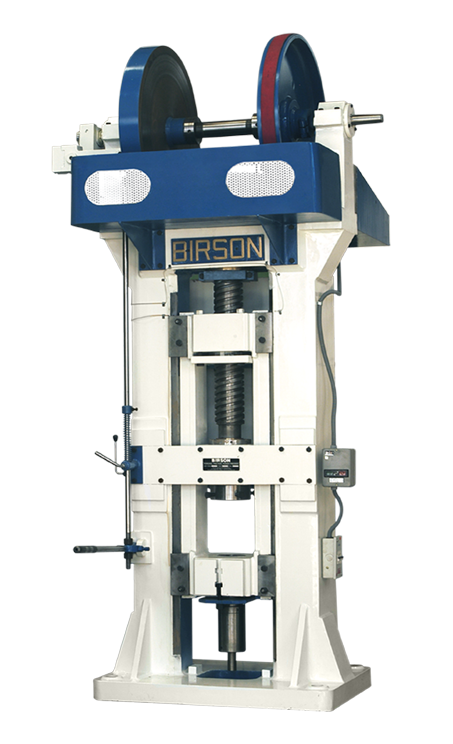

These screw presses are designed to serve forging long bolts head, axle shaft, nuts any kinds of auto parts etc. These presses are ideal high precision forging machines.In this special type model their is straight fly wheels and no counter weight which inturn reduce the load from ram as well as from the Screw also hence less breakage of ram. In this every stroke of press is adjustable and ram is balanced by air cylinder full compensating the ram weight this easy upstroking & improve the efficiency & accuracy of press. It also consumed less energy.Vincent Presses with friction drive on which forging blow takes place in an upward direction i.e. from bottom towards top. The screw nut is positioned in top cross head of a frame type ram. The screw presses therefore offer higher screw efficiency with identical performance.The ram being moved upward in axial direction by rotation of longitudinally fixed screw. Ejector is provided at lower part of the ram.

TECHNICAL SPECIFICATION

In view of continuously development, we reserve the right to modify the design and or dimensions without notice.

FEATURES AND ADVANTAGES

• High useful working energy.
• Mechanical energy store.
• Overload protection by slipping wheel.
• Thermally stable ram guide ways with wear-proof guide gibs.
• High forging precision.
• No need to readjust ram with machine warming up.
• No jamming under load possible.
• Long Die life because of short Pressure-Contact Times.
• Sequence of different strokes on one work piece possible.
• Totally closed die forging capability.
